Soft magnetic ferrite
 Your Location :  Home > Products > Soft magnetic ferrite

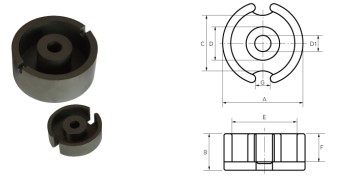

G(罐型)
AL-Value test condition:(电感系数测试条件)1KHZ,0.25V100Ts,25
NO. 型号 Dimension(mm)尺寸 重量()   型号 Effective Parameter 有效参数 AL-Value(nH/N2) ±25%
Type A B C D D1 E F G (g/prs) Type CI(mm-1) Ae(mm2) Le(mm) Ve(mm3) M40 M40A M7K
1 Gu1408 14.4+0-0.7 4.5+0-0.2   6.1+0-0.5 2.9+0.3-0 11.5+0.7-0 2.8+0.3-0 2 3.00   Gu1408 0.8 20.00 25.00 500.00 1680   6000
2 Gu1811 18.0±0.50 6.0±0.30 13.6±0.30 7.5±0.25 3.2±0.30 15.0min 4.25±0.30 4.25±0.30 5.50   Gu1811 0.648 42.56 27.58 1173.90 3300 4072 7000
3 Gu2213 22.2+0-1.0 7.0+0-0.3   9.4+0-0.5 4.3+0.4-0 17.8+0.8-0 4.6+0.4-0 3 10.00   Gu2213 0.482 31.80 63.20 1990.00 2900   8000
4 Gu2616 26.2+0-1.2 8.3+0-0.3   11.6+0-0.7 5.3+0.4-0 21.2+1.0-0 5.5+0.5-0 3 20.00   Gu2616 0.4 37.60 93.90 3460.00     10000
5 Gu3019 30.0+0-1.2 9.7+0-0.3   13.6+0-0.7 5.3+0.4-0 24.9+1.2-0 6.5+0.5-0 3.5 30.00   Gu3019 0.33 45.00 136.00 6100.00 4200   15000
6 Gu3019D1 30.0±0.60 9.55±0.30 20±0.30 12.55±0.25 7.75±0.25 25.2±0.60 6.9±0.30 3.4±0.30 33.00   Gu3019D1 0.4308 99.05 42.67 4226.80 4300
7 Gu3622 36.5+0-1.5 11.1+0-0.3   16.2+0-0.8 5.3+0.4-0 29.8+1.5-0 7.3+0.6-0 3.5 53.00   Gu3622 0.26 52.00 202.00 10600.00     20000
