Soft magnetic ferriteET
| AL-Value test condition:(电感系数测试条件)1KHZ,0.25V，100Ts,25℃ | ||||||||||||||||||

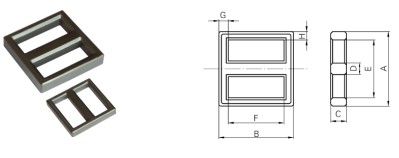

| NO. | 型号 | Dimension(mm)尺寸 | 重量(克） | 型号 | Effective Parameter 有效参数 | AL-Value(nH/N2) | ||||||||||||
| Type | A | B | C | D | H | G | (g/pcs) | Type | CI(mm-1) | Ae(mm2) | Le(mm) | Ve(mm3) | M5K | M7K | M10K | M12K | ||
| 1 | ET20 | 20.1 ±0.5 | 20.1±0.5 | 4.4±0.3 | 3.9±0.3 | 2.2±0.15 | 2.2±0.15 | 6.3 | ET20 | 2.96 | 17.6 | 52.1 | 917 | 2000±25% | 2700±25% | 3600±30% | 4400±30% | |
| 2 | ET22 | 23.5±0.5 | 22.0±0.3 | 3.5±0.2 | 3.8±0.1 | 2.2±0.15 | 2.2±0.15 | 4.8 | ET22 | 4.5 | 13.3 | 60.1 | 910 | 1700±25% | 2000±25% | 3000±30% | 3500±30% | |
| 3 | ET24 | 24.2±0.5 | 24.2±0.5 | 4.0±0.3 | 4.0±0.3 | 2.4±0.15 | 2.4±0.15 | 6.8 | ET24 | 3.86 | 16 | 61.7 | 1119 | 2000±25% | 2700±25% | 3600±30% | 4400±30% | |
| 4 | ET25 | 24.6±0.3 | 24.8±0.3 | 7.0±0.2 | 6.9±0.2 | 6.9±0.2 | 2.5±0.15 | 13.0 | ET25 | 1.22 | 48.3 | 59.4 | 2494 | 2500±25% | 3000±25% | 4000±30% | 4600±30% | |
| 5 | ET26 | 26.0±0.4 | 26.0±0.4 | 4.5±0.3 | 4.5±0.3 | 2.5±0.15 | 2.5±0.15 | 6.4 | ET26 | 3.25 | 20.25 | 66.0 | 1483 | 2200±25% | 2800±25% | 3600±30% | 4000±30% | |
| 6 | ET28 | 28.45±0.55 | 28.45±0.55 | 5.0±0.3 | 5.0±0.3 | 2.9±0.2 | 2.9±0.2 | 11.0 | ET28 | 2.86 | 25.0 | 71.65 | 2048 | 2600±25% | 3600±25% | 4500±30% | 5400±30% | |
| 7 | ET29 | 29.0±0.3 | 30.0±0.3 | 5.0±0.3 | 5.0±0.3 | 2.9±0.2 | 2.9±0.2 | 11.2 | ET29 | 2.93 | 25 | 73.3 | 2090 | 2600±25% | 3600±25% | 4500±30% | 5400±30% | |
| 8 | ET35 | 35.3±0.6 | 35.3±0.6 | 7.5±0.3 | 7.5±0.3 | 4.0±0.2 | 4.0±0.2 | 27.5 | ET35 | 1.54 | 56.25 | 86.39 | 5291 | 4000±25% | 5000±25% | 6400±30% | 8500±30% | |
