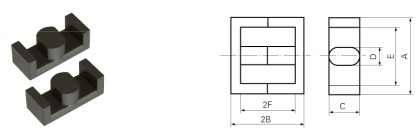

Soft magnetic ferriteED
| AL-Value test condition:(电感系数测试条件)1KHZ,0.25V，100Ts,25℃ | |||||||||||||||
| NO. | 型号 | Dimension(mm)尺寸 | 重量(克） | 型号 | Effective Parameter 有效参数 | AL-Value(nH/N2) ±25% | |||||||||
| Type | A | B | C | D | Emin | F | (g/prs) | Type | CI(mm-1) | Ae(mm2) | Le(mm) | Ve(mm3) | M40 | ||
| 1 | ED2820 | 28.0±0.6 | 10.2±0.3 | 11.7±0.3 | 8.5±0.2 | 20.6 | 6.7±0.2 | 22.0 | ED2820 | 0.6 | 86.1 | 50.5 | 4348 | 3000 | |
| 2 | ED2821 | 28.0±0.6 | 10.7+0.3/-0 | 11.7±0.3 | 8.5±0.2 | 20.6 | 7.2+0.3/-0 | 22.6 | ED2821 | 0.6 | 86.1 | 51.4 | 4392 | 2950 | |
| 3 | ED2834 | 27.9±0.6 | 16.9±0.25 | 11.9±0.3 | 8.5±0.25 | 20.4 | 12.53±0.25 | 34.0 | ED2834 | 0.96 | 82.53 | 78.9 | 6510 | 2300 | |
| 4 | ED2820C | 28+0.4/-0.6 | 10.2±0.2 | 11.9±0.2 | 8.5±0.2 | 20.4 | 6.6+0.2/-0.15 | 29.0 | ED2820C | 0.81 | 83.1 | 67 | 5570 | 2700 | |
| 5 | ED2920 | 29.3±0.7 | 10.2±0.25 | 11.6±0.2 | 8.4±0.2 | 21.6 | 6.85±0.15 | 22.5 | ED2920 | 0.6 | 85.7 | 51.6 | 4367 | 2500 | |
| 6 | ED2922 | 29.3±0.7 | 10.9+0.3/-0 | 11.6±0.2 | 8.4±0.2 | 21.6 | 7.2+0.3/-0 | 22.3 | ED2922 | 0.6 | 85.7 | 51.6 | 4367 | 3000 | |
| 7 | ED2929 | 29.3±0.7 | 14.6±0.25 | 11.6±0.2 | 8.4±0.2 | 21.6 | 11.0±0.2 | 30.0 | ED2929 | 0.83 | 84.1 | 69.5 | 5845 | 2400 | |
| 8 | ED4025 | 40.2±0.5 | 12.5±0.3 | 22.0±0.3 | 11.4±0.3 | 30.0 | 8.7±0.3 | 67.8 | ED4025 | 0.34 | 197.2 | 67 | 13212 | 5800 | |
| 9 | ED4028 | 40.2±0.5 | 14.0±0.3 | 22.0±0.3 | 11.4±0.3 | 30.0 | 10.2±0.3 | 809 | ED4028 | 0.36 | 197.2 | 70.1 | 13810 | 5500 | |
